V-Nose Trailers

Put that space in the front of your v-nose to good use.

Customized cabinets for V-Nose Trailers

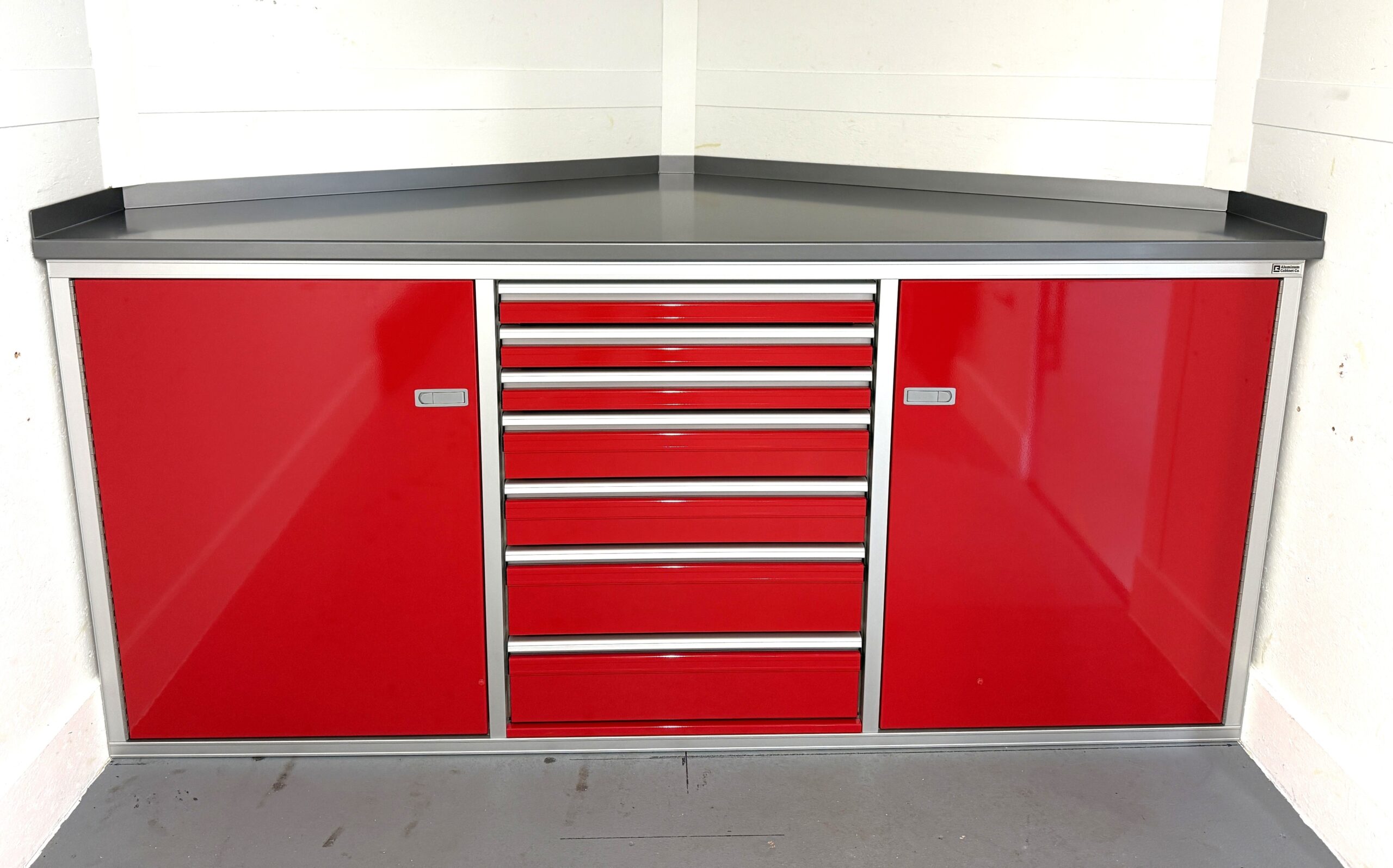

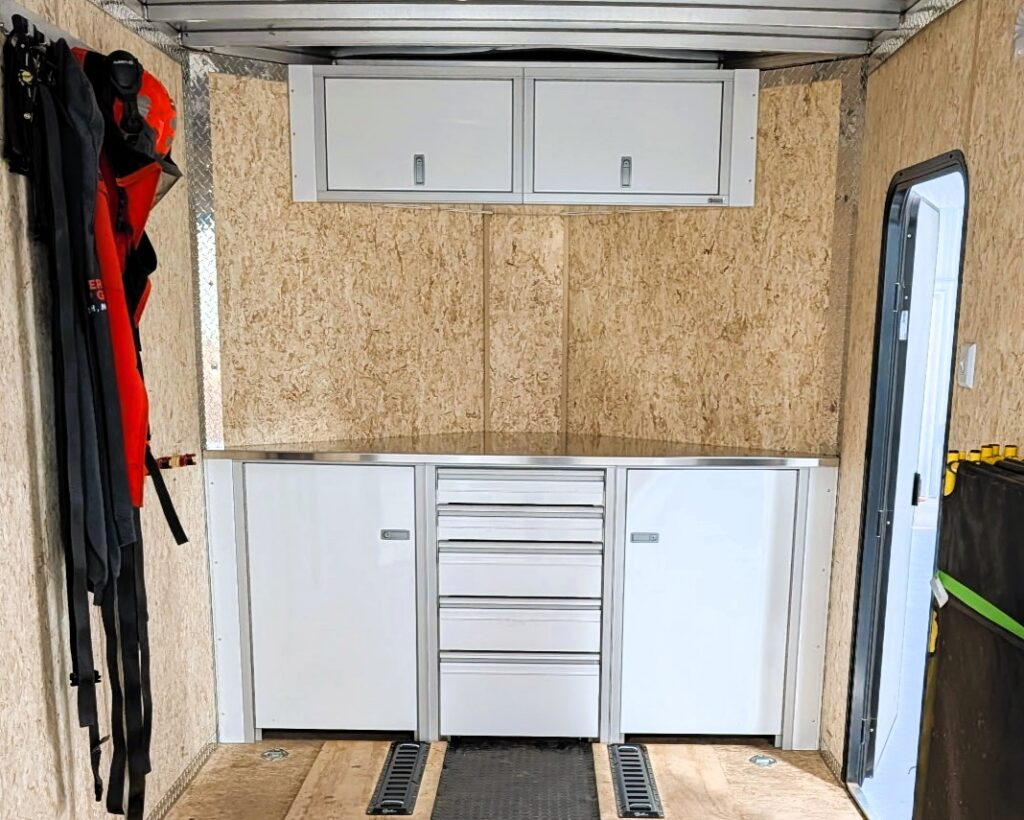

Get the most out of your V-nose trailer’s space with our customized base and overhead cabinets. Our V-nose base cabinets come with a 1/8” thick 1 pc aluminum countertop with formed side and back splashes. You can have it built specifically to your trailer’s needs. We can modify the side and back splashes per your requirements as well.

These cabinets are a great place to house things like inverters, batteries, winches, etc. With our latching system, you can feel calm knowing your drawers and doors won’t open as you’re driving. We also supply adjustable countertop supports to tie into the walls for added support. Meaning less stress and more miles.

If you want to know more about our V-Nose cabinet options, contact our team

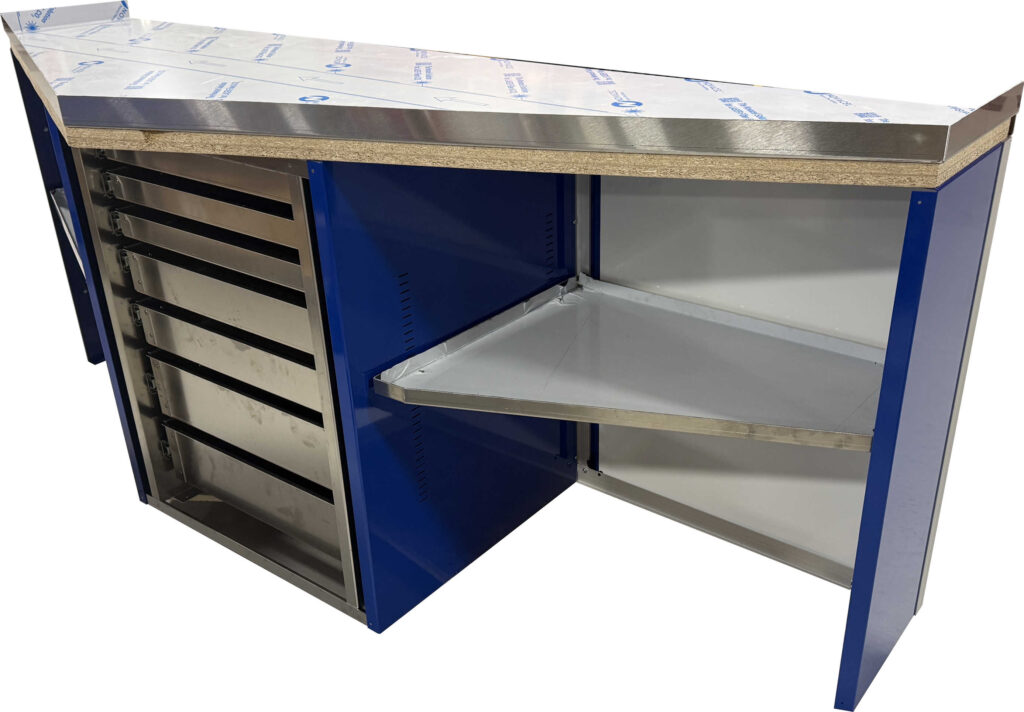

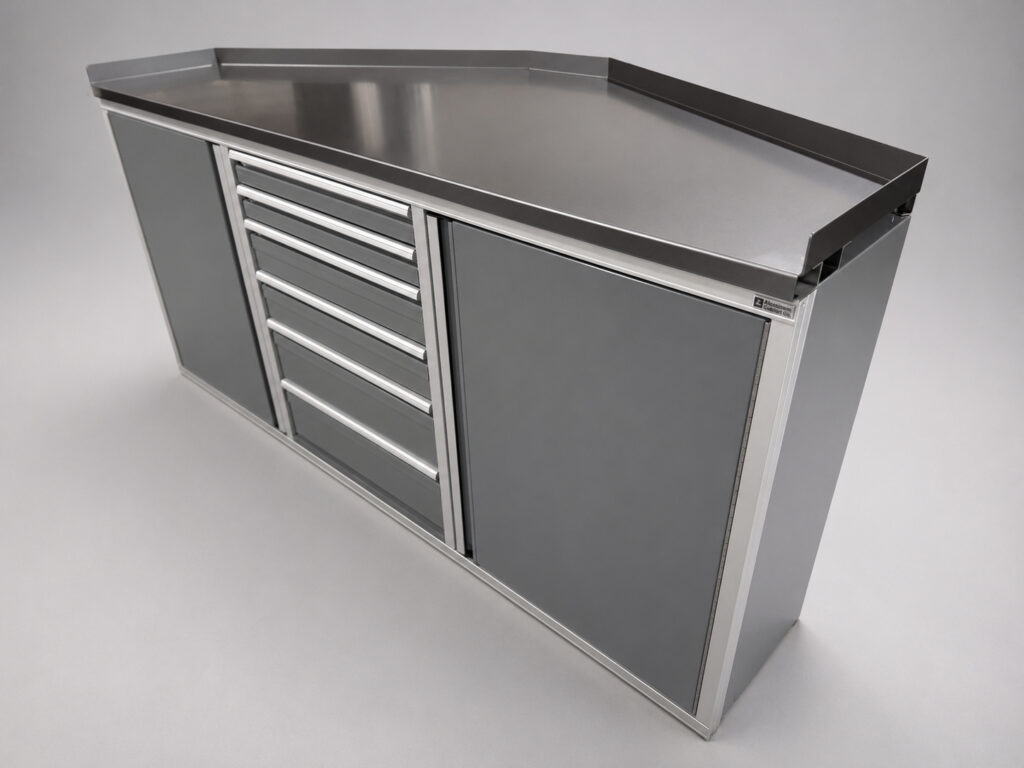

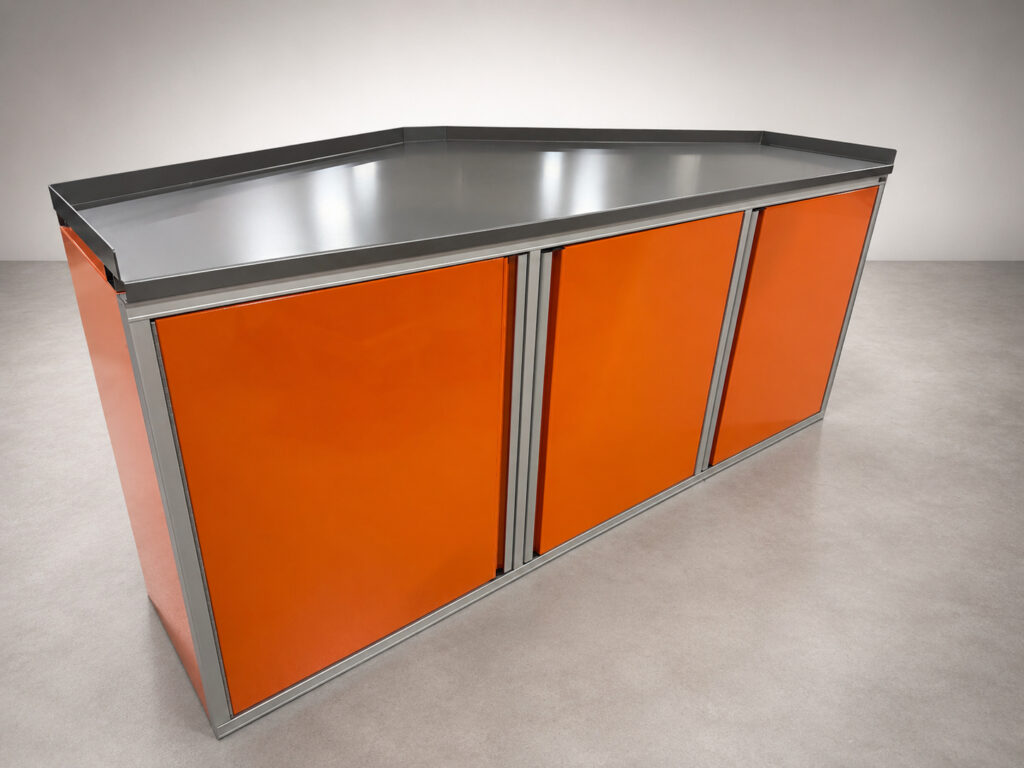

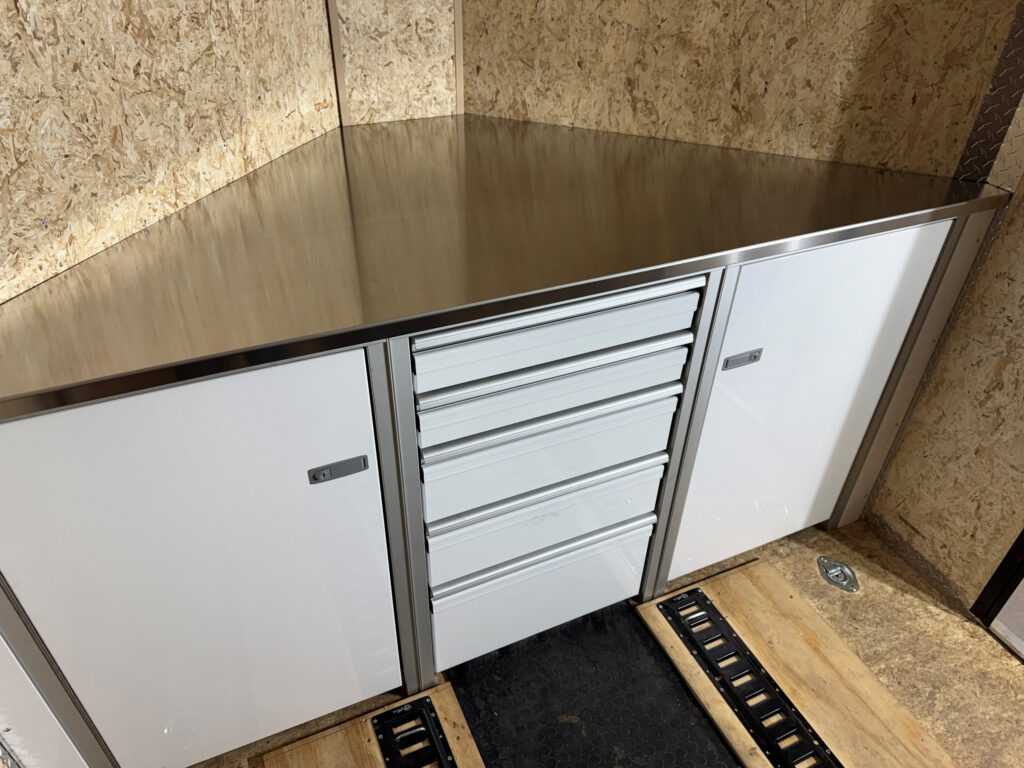

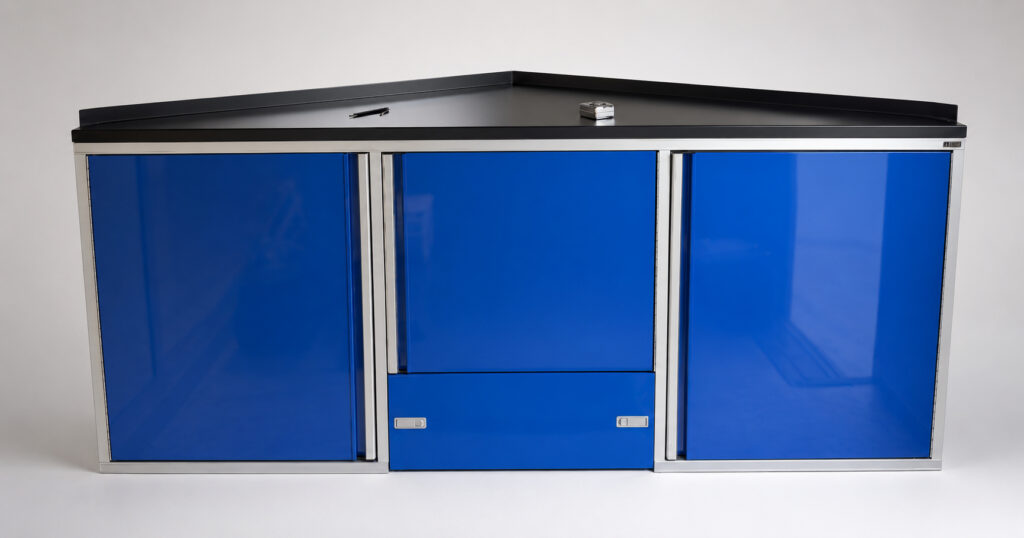

aluminum v-nose base cabinet
aluminum v-nose base cabinet
aluminum v-nose bracket

V-Nose Quote

In order to obtain an accurate quote and for installation satisfaction, please use the diagram on the right to fill in the corresponding dimensions below to the nearest eighth of an inch (.125)

Base Cabinet

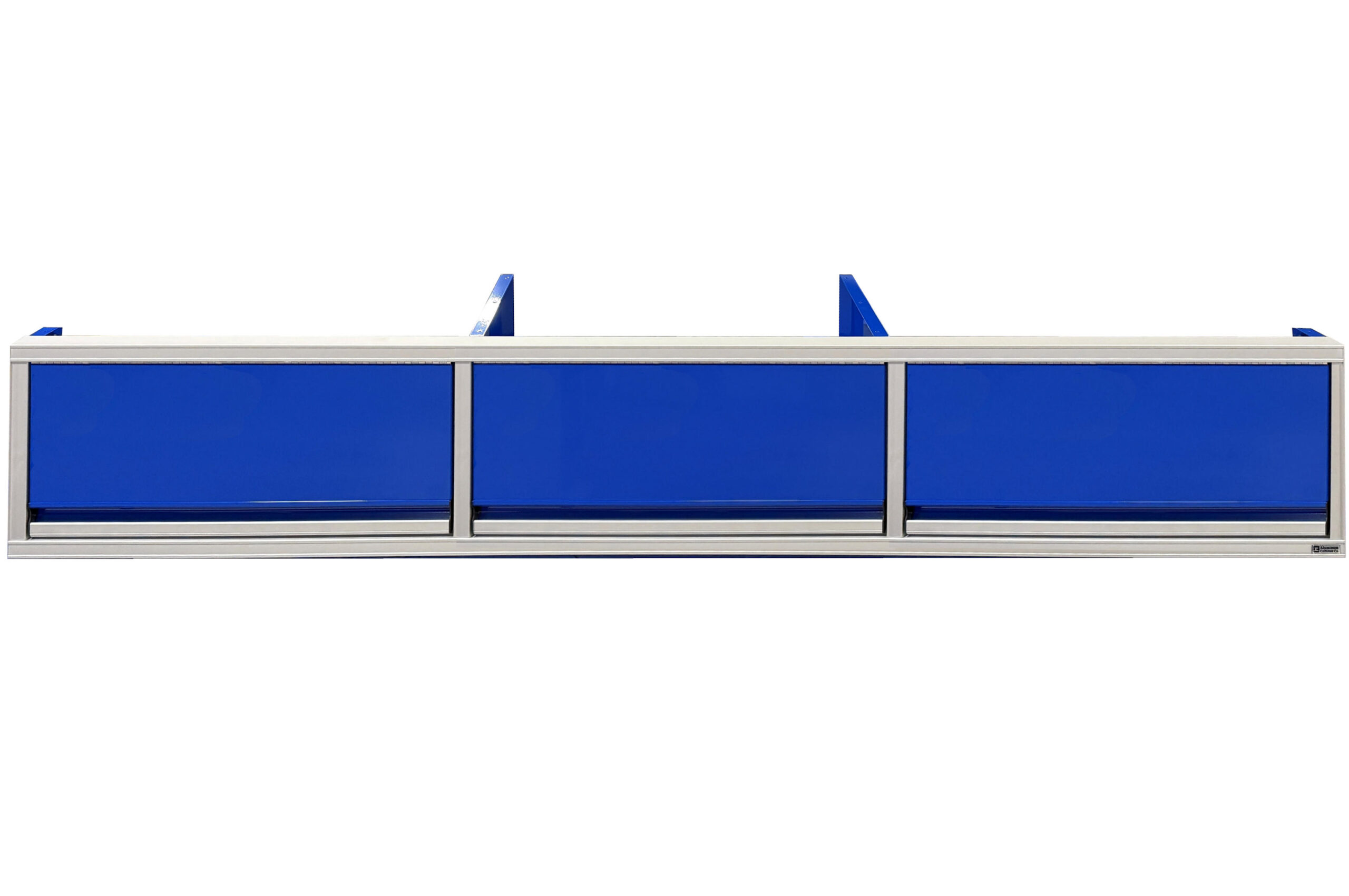

Overhead Cabinet

Overall Width (Dim A)
Measure the overall width of the space the cabinet will be in at the floor level and at the countertop height. Use the narrowest dimension measured. For overheads, measure at the height they will be mounted.

Cabinet Width (Dim B)
Measure from the point of the trailer nose perpendicular to cabinet front.

Width of Flat (Dim G)
To avoid interference with trailer nose there will usually be a flat needed at the point of the trailer. Dimension ideal flat width.

Dimension of Nose Center to LH and RH Side
(Dim C, Dim D)

From the point of the trailer nose draw a line perpendicular to the cabinet front and mark where they intersect. Now—measure from the side of the trailer to that intersection point for both the RH and LH sides. This dimension is very important as most trailers are not square. Dim C and Dim D will likely be different.

Length of LH and RH Side (Dim E, Dim F)
Dimension from cabinet front to where the trailer starts to angle to the nose.

Cabinet Features

  • Cabinet panels & doors constructed from high quality 5052 Aluminum
  • Extruded Aluminum frames with clear anodized finish for strength and durability
  • Double walled doors with bonded 0.040″ thick Aluminum door backs
  • Cabinet doors are secured with a flush trigger door latch (locking option available)
  • Full length continuous Aluminum door hinges add strength and adjustability
  • Internal shelf rails allow shelves to be adjusted from top to bottom
  • Durable powder coated finish in any of our standard colors
  • Precision fasteners and hardware are used for a clean professional look
  • CAD designed and CNC manufactured to assure the highest quality fit & finish that is second to none
  • All cabinets come fully assembled ready for easy installation
  • Ask us about a “knocked-down” option to save on shipping (Not available for all cabinets)

Cabinet Options

  • Stainless or Aluminum laminate and Butcher Block countertops
  • Complete multi-drawer systems built to fit featuring our “Dura-Latch” system
  • 3″ deep drawer over door featuring our “Dura-Latch” system
  • Lift off doors and Double Doors for limited space applications
  • Panel notching available for wheel wells or obstructions
  • Choice of Left-hand or Right-hand door swings
  • Additional shelves and hardware
  • Cabinet bottom
  • Locking door latches
  • Custom powder coat colors – Additional costs may apply

Trailer Base Cabinet Dimensions

Width in Inches

24
36
48
60
72
96

Height in Inches

38
38
38
38
38
38

Depth in Inches

24
24
24
24
24
24

Doors

1
1
2
2
2
3

Shelves

1
1
2
2
2
3

Material in Inches

0.080
0.080
0.080
0.080
0.080
0.080

P/N

BC243824-1
BC364824-1
BC483824-2
BC603824-2
BC723824-2
BC963824-3

Width

24″
36″
48″
60″
72″
96″

Height

38″
38″
38″
38″
38″
38″

Depth

24″
24″
24″
24″
24″
24″

Doors

1
1
2
2
2
3

Shelves

1
1
2
2
2
3

Width in Inches

24
36
48
60
72
96

Height in Inches

38
38
38
38
38
38

Depth in Inches

18
18
18
18
18
18

Doors

1
1
2
2
2
3

Shelves

1
1
2
2
2
3

Material in Inches

0.080
0.080
0.080
0.080
0.080
0.080

P/N

BC243818-1
BC364818-1
BC483818-2
BC603818-2
BC723818-2
BC963818-3

Width

24′
36″
48″
60″
72″
96″

Height

38″
38″
38″
38″
38″
38″

Depth

18″
18″
18″
18″
18″
18″

Doors

1
1
2
2
2
3

Shelves

1
1
2
2
2
3


Counter Top Options

Stainless Steel Laminate
Aluminum Laminate
Butcher Block
Stainless Steel Kitchen Grade

Wall Cabinet Dimensions

24″ Height

Width in Inches

24
48
72
96

Height in Inches

24
24
24
24

Depth in Inches

14
14
14
14

Doors

1
2
3
4

Shelves

1
2
3
4

Material in Inches

0.063
0.063
0.063
0.063

P/N

WC242414-1
WC482414-2
WC722414-3
WC962414-4

Width

24″
48″
72″
96″

Height

24″
24″
24″
24″

Depth

14″
14″
14″
14′

Doors

1
2
3
4

Shelves

1
2
3
4

16″ Height

Width in Inches

24
48
72
96

Height in Inches

16
16
16
16

Depth in Inches

14
14
14
14

Doors

1
2
3
4

Material in Inches

0.063
0.063
0.063
0.063

P/N

WC241614
WC481614
WC721614
WC961614

Width

24″
48″
72″
96″

Height

16″
16″
16″
16″

Depth

14″
14″
14″
14″

Doors

1
2
3
4

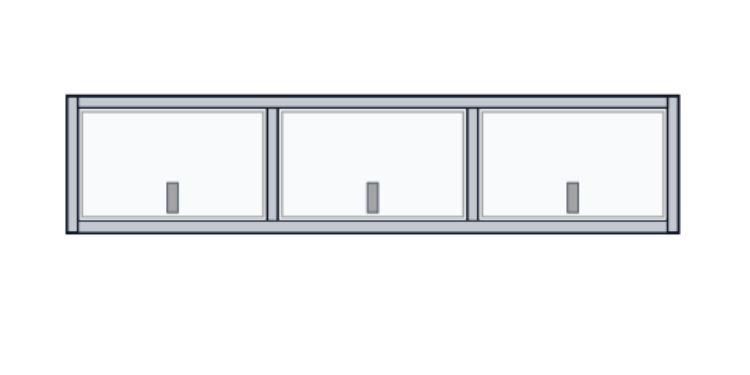

Overhead Cabinet Dimensions

14″ Height

Width in Inches

24
36
48
48
60
72
96

Height in Inches

14
14
14
14
14
14
14

Depth in Inches

14
14
14
14
14
14
14

Doors

1
1
1
2
2
2
3

Material in Inches

0.063
0.063
0.063
0.063
0.063
0.063
0.063

P/N

OH241414-1
OH361414-1
OH481414-1
OH481414-2
OH601414-2
OH721414-2
OH961414-3

Width

24″
36″
48″
48″
60″
72″
96″

Height

14″
14″
14″
14″
14″
14″
14″

Depth

14″
14″
14″
14″
14″
14″
14″

Doors

1
1
1
2
2
2
3

16″ Height

Width in Inches

24
36
48
48
60
72
96

Height in Inches

16
16
16
16
16
16
16

Depth in Inches

14
14
14
14
14
14
14

Doors

1
1
1
2
2
2
3

Material in Inches

0.063
0.063
0.063
0.063
0.063
0.063
0.063

P/N

OH241614-1
OH361614-1
OH481614-1
OH481614-2
OH601614-2
OH721614-2
OH961614-3

Width

24″
36″
48″
48″
60″
72″
96″

Height

16″
16″
16″
16″
16″
16″
16″

Depth

14″
14″
14″
14″
14″
14″
14″

Doors

1
1
1
2
2
2
3


Closet Cabinet Dimensions

Width in Inches

24
36
48

Height in Inches

75
75
75

Depth in Inches

24
24
24

Doors

1
1
2

Shelves

1
1
2

Material in Inches

0.080
0.080
0.080

P/N

CL243824-1
CL364824-1
CL483824-2

Width

24″
36″
48″

Height

75″
75″
75″

Depth

24″
24″
24″

Doors

1
1
2

Shelves

1
1
2

Marine-grade Aluminum
