It's time to transform your Ford Transit.
Your Ford Transit is ready to be decked out with expert cabinetry. We’ve got just the stuff to store your stuff. We can build custom-made cabinets or craft them them using our pre-set packages. With a variety of colors to choose from and protective powder coating, you’ll be set for life. We’re ready to build when you’re ready to go. Talk to one of our fabrication experts about your cabinet goals today.
Our typical turnaround is 4-6 weeks so get your order in early. All aluminum cabinets are properly secured and packaged for freight shipment around the United States.

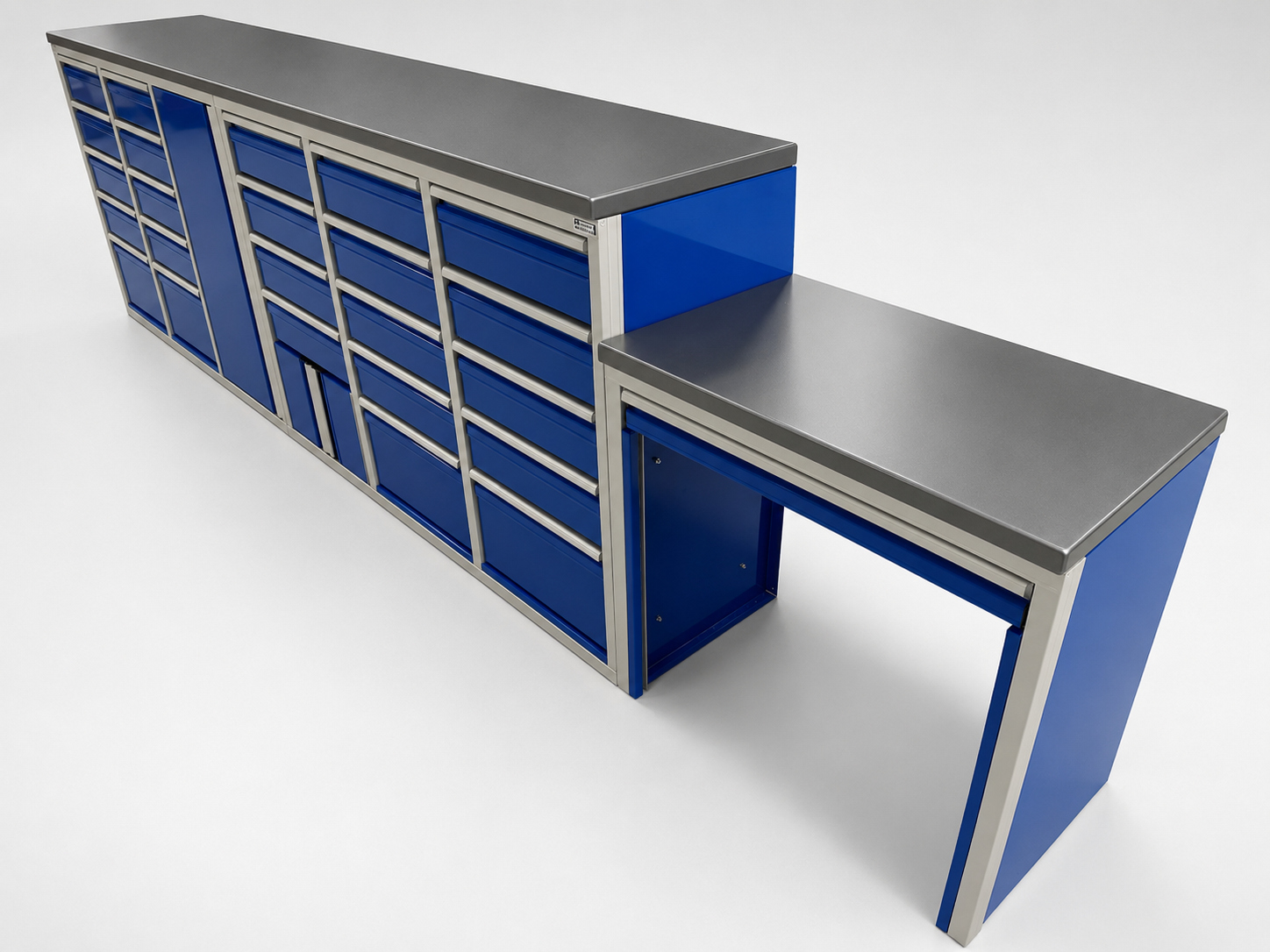

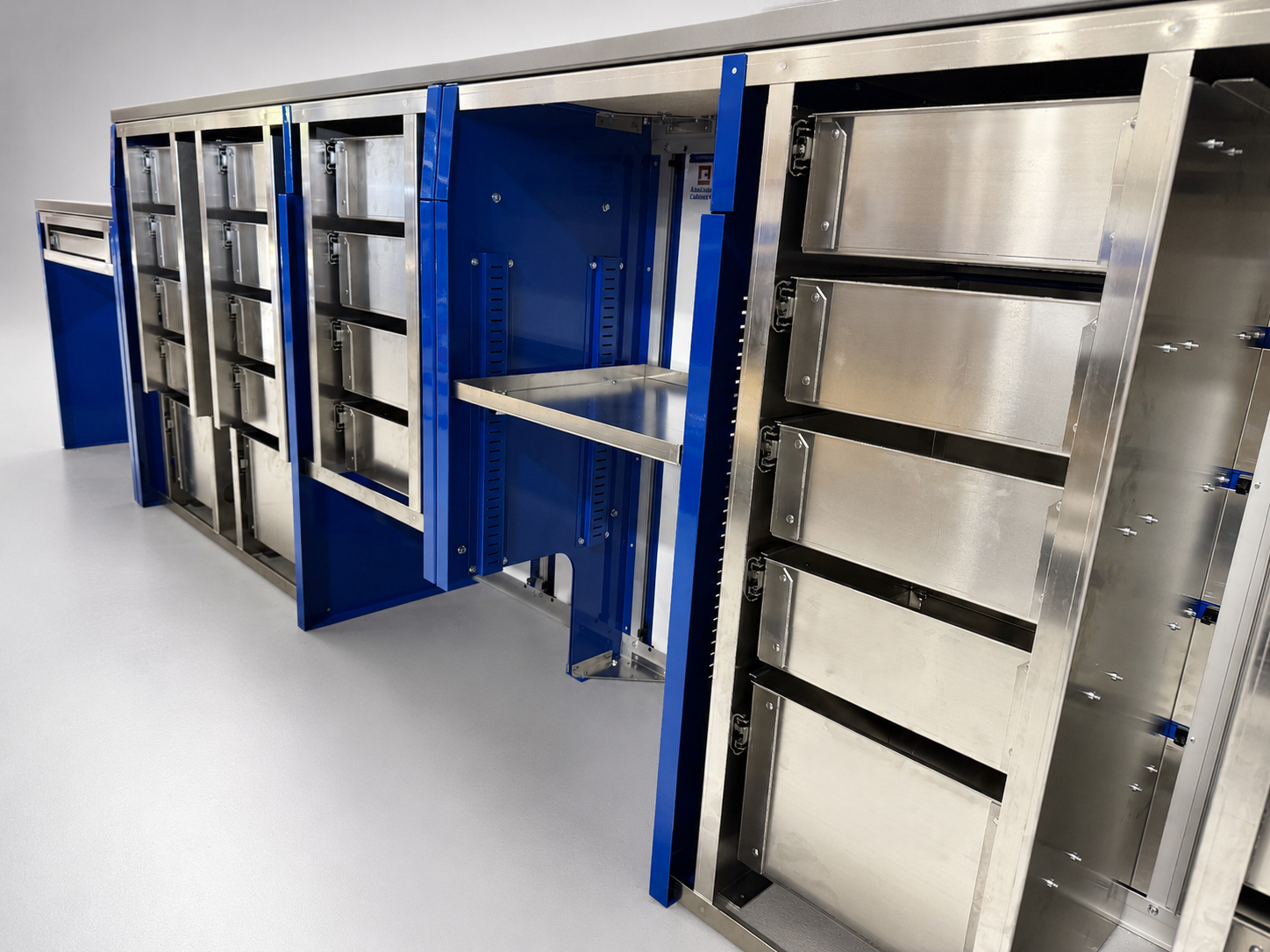

Ford Transit Gallery
Click to enlarge photo.
Cabinet Features
- Packages available for 148″ & 148″ Extended Ford Transit Vans
- Cabinet panels & doors constructed from high quality 5052 Aluminum
- Extruded Aluminum frames with clear anodized finish for strength and durability
- Double walled doors with bonded 0.040″ thick Aluminum door backs
- Cabinet doors are secured with a flush trigger door latch (locking option available)
- Full length continuous Aluminum door hinges add strength and adjustability
- Internal shelf rails allow shelves to be adjusted from top to bottom
- Durable powder coated finish in any of our standard colors
- Precision fasteners and hardware are used for a clean professional look
- CAD designed and CNC manufactured to assure the highest quality fit & finish that is second to none
- All cabinets come fully assembled ready for easy installation
- Ask us about a “knocked-down” option to save on shipping (Not available for all cabinets)
Cabinet Options
- Stainless laminate and Butcher Block countertops
- Complete multi-drawer systems featuring our “Dura-Latch” system
- 3″ deep drawer over door featuring our “Dura-Latch” system
- Lift off doors and Double Doors for limited space applications

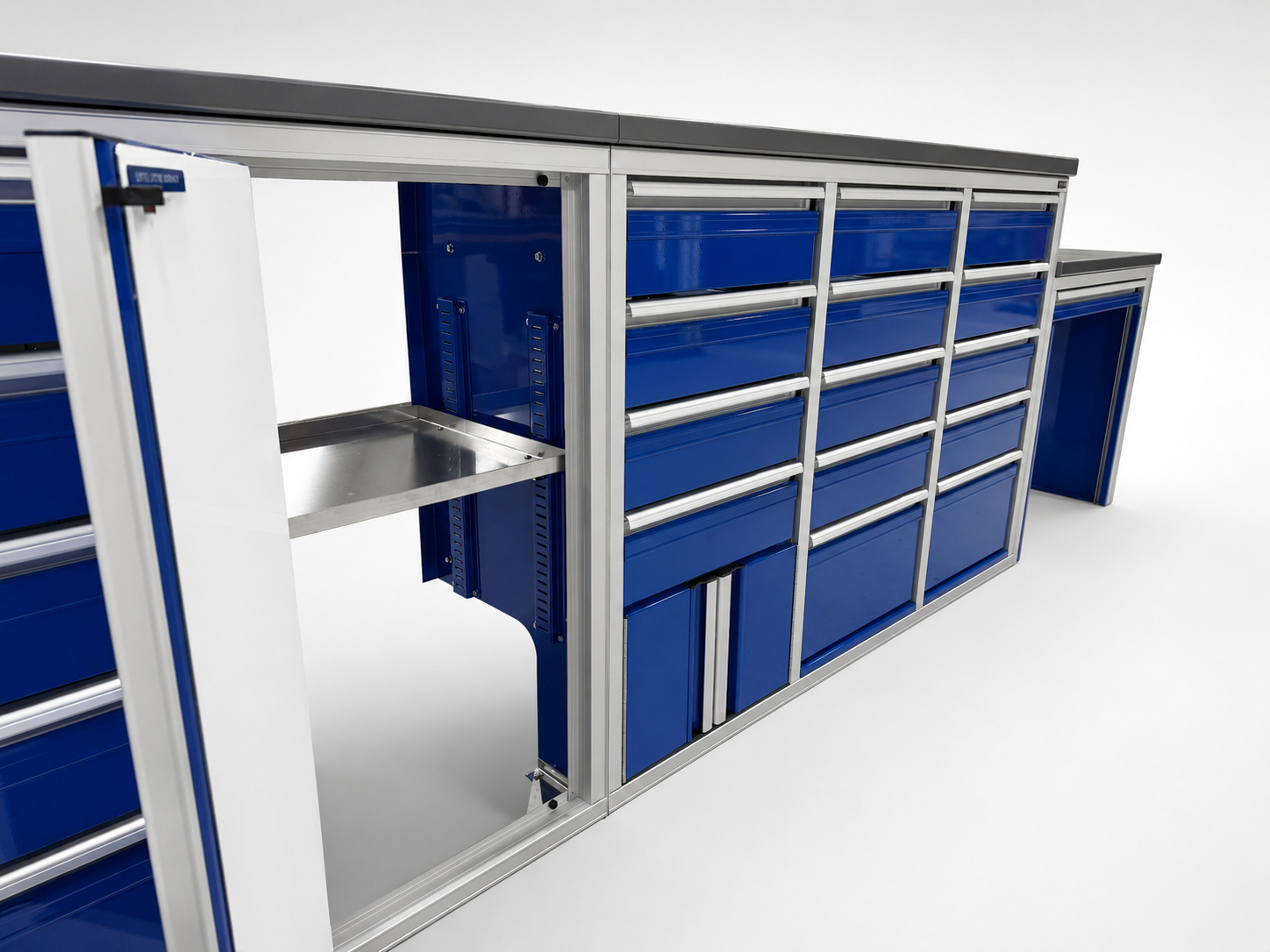

- Panel notching available for wheel wells or obstructions
- Choice of Left-hand or Right-hand door swings
- Additional shelves and hardware
- Cabinet bottom
- Locking door latches
- Custom powder coat colors – Additional costs may apply
Ford Transit Van Base Cabinet Dimensions
Width in Inches
24
36
48
72
96
Height in Inches
38
38
38
38
38
Depth in Inches
20
20
20
20
20
Doors
1
1
2
3
4
Shelves
1
1
2
3
4
Material in Inches
0.080
0.080
0.080
0.080
0.080
P/N
BC243820-1-V
BC364820-1-V
BC483820-2-V
BC723820-3-V
BC963820-4-V
Width
24″
36″
48″
72″
96″
Height
38″
38″
38″
38″
38″
Depth
20″
20″
20″
20″
20″
Doors
1
1
2
3
4
Shelves
1
1
2
3
4
Counter Top Options
Stainless Steel Laminate
Butcher Block
Stainless Steel Kitchen Grade
Closet Cabinet Dimensions
Width in Inches
24
36
48
Height in Inches
75
75
75
Depth in Inches
20
20
20
Doors
1
2
2
Shelves
1
2
2
Material in Inches
0.080
0.080
0.080
P/N
CL247520-1-V
CL367520-1-V
CL487520-2-V
Width
24″
36″
48″
Height
75″
75″
75″
Depth
20″
20″
20″
Doors
1
2
2
Shelves
1
2
2
Overhead Cabinet Dimensions
14″ Height
Width in Inches
24
36
48
48
60
72
96
Height in Inches
14
14
14
14
14
14
14
Depth in Inches
14
14
14
14
14
14
14
Doors
1
1
1
2
2
2
3
Material in Inches
0.063
0.063
0.063
0.063
0.063
0.063
0.063
P/N
OH241414-1-V
OH361414-1-V
OH481414-1-V
OH481414-2-V
OH601414-2-V
OH721414-2-V
OH961414-3-V
Width
24″
36″
48″
48″
60″
72″
96″
Height
14″
14″
14″
14″
14″
14″
14″
Depth
14″
14″
14″
14″
14″
14″
14″
Doors
1
1
1
2
2
2
3
16″ Height
Width in Inches
24
36
48
48
60
72
96
Height in Inches
16
16
16
16
16
16
16
Depth in Inches
14
14
14
14
14
14
14
Doors
1
1
1
2
2
2
3
Material in Inches
0.063
0.063
0.063
0.063
0.063
0.063
0.063
P/N
OH241614-1-V
OH361614-1-V
OH481614-1-V
OH481614-2-V
OH601614-2-V
OH721614-2-V
OH961614-3-V
Width
24″
36″
48″
48″
60″
72″
96″
Height
16″
16″
16″
16″
16″
16″
16″
Depth
14″
14″
14″
14″
14″
14″
14″
Doors
1
1
1
2
2
2
3
Overhead Cabinet Packages
